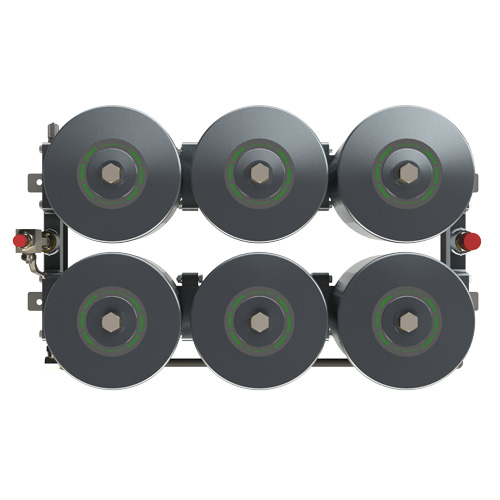

CARDEV 6S-350-C12
By-pass Oil Filter


By-pass filter suitable for systems over 3000 litres. Max feed pressure 350 Bar. Flow rate controlled to 12 l/m.

Supplied with 6x CARDEV SDFC Filter Elements.

Benefits include:

  • Removes microparticles
  • Removes free and dissolved water contamination
  • Increases system reliability
  • Prevents system corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 savings
  • Reduces operating costs

For more information call us on
01423 522911

Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

CARDEV Datasheet

The 6S-350-C12 features include:

  • Input pressure 6-350 Bar
  • Flow through filter controlled at 12 litres per minute
  • Rugged construction – capable of withstanding the harshest environments
  • Integrated sample point – allows connection to ETL ConMon particle monitors / oil sampling

Suitable for all types of industrial applications including:

  • Power generation
  • Plastic moulding
  • Cement industry
  • Manufacturing plants
  • Winches
  • Cranes
  • A-Frames
  • ROV launch and recovery systems – LARS
  • Tether management system – TMS
  • HPUs

Flow Rate Through Filter (l/h)**:

Dimensions (mm):
H: 316 W: 865 L: 447


Inlet: 3/8″ BSP (m)
Outlet: 3/4″ BSP (m)

Weight (kg):

Filter Element Type:
Standard Fit 6 x SDFC

Filtration Results

Water Removed

Removes free and dissolved water down to <50ppm (0.005%).

Particles Removed

100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).

Each SDFC Filter Element Can Remove Up To

Particle Contamination

Water Contamination
