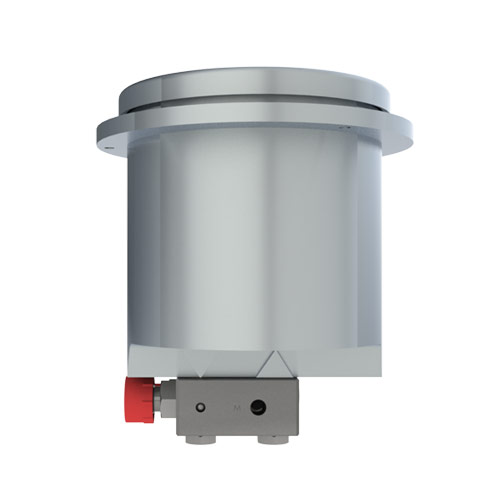

CARDEV HDU-H300FL2
By-pass Oil Filter

Description

Designed to be fitted flush in the top of a tank. By-pass filter suitable for systems of up to 200 litres. Max feed pressure 300 Bar. Flow rate controlled to 2 l/m.

Supplied with 1x CARDEV HDFC-N Filter Element.

Benefits include:

  • Low profile surface mounted installation
  • Removes microparticles
  • Removes free and dissolved water contamination
  • Increases system reliability
  • Prevents system corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 saving
  • Reduces operating costs

For more information call us on
01423 522911





Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

cardev-datasheet
CARDEV Datasheet

The HDU-H300FL2 features include:

  • Low profile surface mounted installation
  • Removes free and dissolved water contamination
  • Removes microparticles
  • Increases system reliability
  • Prevents system corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 savings
  • Reduces operating costs

Suitable for all types of industrial applications including:

  • Earth moving machines
  • Forestry equipment
  • Mobile cranes
  • Drilling/pilling equipment
  • Static hydraulic systems

Flow Rate Through Filter (l/h)**:
120
Dimensions (mm):
H 271 W 245 L 245

Connections:
Inlet: 1/4″ BSP (m)
Outlet: 3/8″ BSP (m)

Weight (kg):
9.4
Filter Element Type:
Standard Fit 1 x SDFC

Filtration Results

Water Removed

Removes free and dissolved water down to <50ppm (0.005%).

Particles Removed

100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).

Each SDFC Filter Element Can Remove Up To

Particle Contamination

Water Contamination
