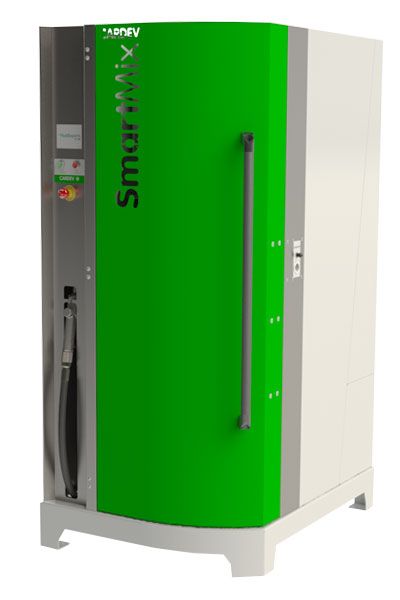

Advanced coolant mixing station offering the same performance as SmartMix, with the addition of dual inverter technology to cope with restrictive distribution pipework systems.
BENEFITS INCLUDE
- Dual inverter controls allow automated coolant distribution through small diameter/restrictive pipe work systems
- Automated mixing of water soluble coolant
- Accurate and repeatable control of concentration
- Tight emulsion / small oil droplet size ensures optimal coolant performance and minimal coolant dragout
- Reduces coolant consumption by up to 25%
- No mixed coolant stored
- Delivers mixed coolant at 90 litres per minute
- Conforms with Water Authority regulation
SMARTMIX PLUS
£12,395.00Ex-VAT
CONTACT US
01423 522911
THE SMARTMIX PLUS PROCESS
Water is drawn from the integral water tank. This reservoir of water (800 litres) allows for fast delivery of mixed coolant even if you have a slow mains water supply.
Soluble oil is drawn via a lance which senses the oil level and shuts down the SmartMixPLUS when the soluble oil container empties, avoiding the possibility of delivering pure water.
Up to 4 concentration presets can be programmed. Coolant is mixed accurately into a consistent, “tight” emulsion giving it the best chance of performing as intended, and lasting as long in service as possible.
The SmartMixPLUS has pressure control, allowing it to pressurise a distribution pipework system, starting and stopping on demand from either the pipework or the local dispensing gun.
SMARTMIX PLUS DISPLAY SCREEN
The touch screen display of the SmartMixPLUS allows for easy operation, as well as displaying system status, soluble oil level, and any fault conditions.
FEATURES
- 800 litre water tank – no reliance on mains water pressure
- Dispensing rate up to 90 litres per minute
- Standard concentration range 0.5% to 20%
- Soluble oil level in barrel / IBC displayed on screen (0-100%)
- Records coolant volume and average concentration delivered since last reset
- Low soluble oil / low water shut-off with warning
OPTIONS
- Auto top up units – automatically control sump levels via a distribution pipe work system
- SmartSump – Automatically control sump levels via a distribution pipe work system. Tramp oil and particle removed automatically, bacterial growth controlled
- Service contract
- XIOT connectivity – monitor and control via cloud
SPECIFICATIONS
Dimensions (mm):
H: 1979 W: 900 L: 1150
Dry Weight (kg):
340
Voltage:
230v
Coolant Delivery Rate:
90
SmartMixPLUS & CCS
The Ultimate Coolant Recycling Solution
Coolant around the workshop is collected in the CCS’s Used Coolant Tank (Tank 1). Used coolant is transferred through a bag filter to the CCS process tank, where tramp oil is coalesced and removed. Ozone gas is infused to control bacteria levels. Recycled clean coolant can be distributed around the workshop from the CCS’s holding tank (Tank 3).
If the level in tank 3 falls to a pre-set low level, the CCS allows new/fresh coolant to enter the tank from the SmartMixPLUS.
Used Coolant
CCS – Central coolant recycling station capable of treating 500 liters of used coolant every 3 to 4 hours.
Recycled Clean Coolant
SmartMixPLUS – Coolant Mixing Stations capable of delivering via distribution pipework systems or locally via dispensing gun. Fast delivery, accurate mixing.
For more information on the SmartMixPLUS
Contact us now for pricing in your workshop.
Tell me more about SmartMixPLUSAuto Top Up – ATU
Intelligent, level-sensing top up unit which, when combined with a SmartMix and distribution pipework, automatically controls the correct coolant level in a machine sump.
Coolant Cleaning Station – CCS
Central coolant cleaning and recycling station capable of treating 500 litres of used coolant every 3 to 4 hours.
