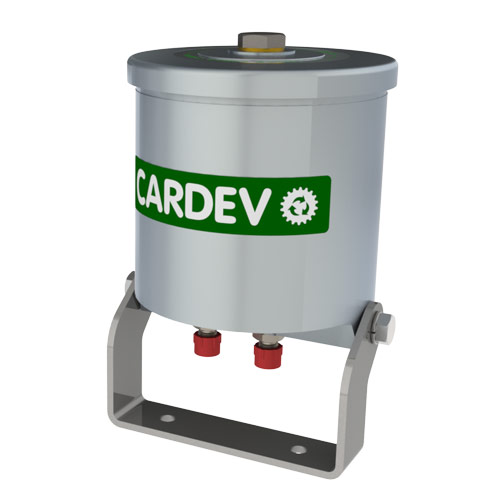

HDU-H8
By-pass Oil Filter

Description

By-pass filter suitable for systems of up to 200 litres. Max feed pressure 2-6 Bar. Flow rate restricted to 120 l/h.

Supplied with 1x CARDEV HDFC-N Filter Element.

Benefits include:

  • Removes microparticles
  • Removes free and dissolved water contamination
  • Increases system reliability
  • Prevents system corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 saving
  • Reduces operating costs

For more information call us on
01423 522911

Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

cardev-datasheet
CARDEV Datasheet

The HDU-H8 features include:

  • Input pressure 2-6 Bar
  • For systems up to 200 litres
  • Increases system reliability
  • Extends oil life and generates CO2 saving
  • Reduces operating costs

Suitable for all types of industrial applications including:

  • Earth moving machines
  • Forestry equipment
  • Mobile cranes
  • Drilling/pilling equipment
  • Static hydraulic systems

Flow Rate Through Filter (l/h):

120
Dimensions (mm):
H: 261 W: 187 L: 168

Connections:

Inlet: 1/4″ BSP (m)
Outlet: 1/4″ BSP (m)

Weight (kg):

4.7
Filter Element Type:
Standard Fit 1 x HDFC-N

Filtration Results

Water Removed

Removes free and dissolved water down to <50ppm (0.005%).

Particles Removed

100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).

Each SDFC Filter Element Can Remove Up To

Particle Contamination

Water Contamination
