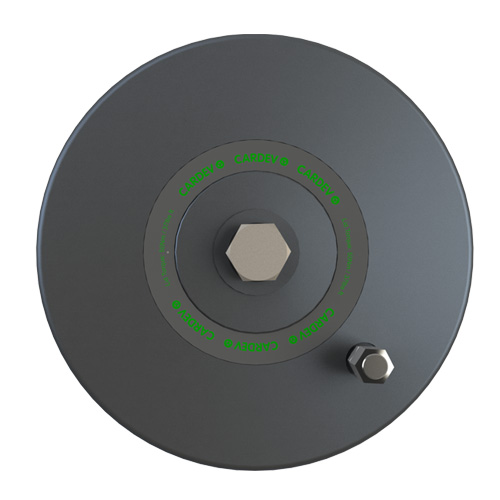

CARDEV SDU-H8UW-S
By-pass Oil Filter

Description

By-pass filter suitable for offshore installation on equipment such as HPUs and winches. Max feed pressure 6 Bar.

Supplied with 1x CARDEV SDFC Filter Element.

Benefits include:

  • Removes free and dissolved water contamination
  • Removes microparticles and salt
  • Increases system reliability
  • Prevents system corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 saving
  • Reduces operating costs

For more information call us on
01423 522911

Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

cardev-datasheet
CARDEV Datasheet

The SDU-H8UW-S features include:

  • Robust construction – hard anodised housing and 316 grade stainless steel hardware
    217mm
  • Input pressure max 6 bar
  • Air bleed valve – eliminate air after a filter change

Suitable for all types of industrial applications including:

  • Winches / cranes on deck
  • LARS
  • HPUs on / under deck

Flow Rate Through Filter (l/h)**:

120 – 240 (Max)
Dimensions (mm):
H: 320 W: 237 L: 217

Connections:

Inlet: 1/4 BSP (f)
Outlet: 1/4 BSP (f)

Weight (kg):

9.0 (approx. 4kg in water)
Filter Element Type:
1x SDFC

Filtration Results

Water Removed

Removes free and dissolved water down to <50ppm (0.005%).

Particles Removed

100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).

Each SDFC Filter Element Can Remove Up To

Particle Contamination

Water Contamination
