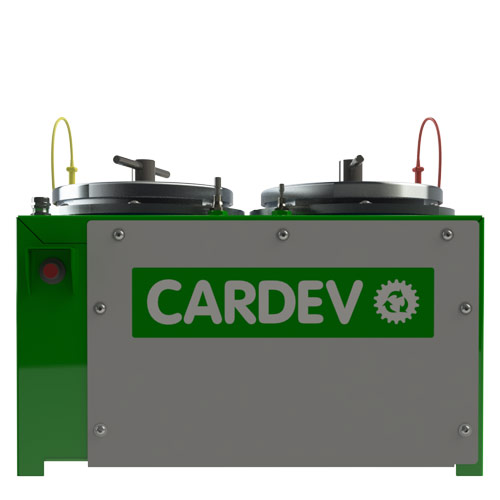

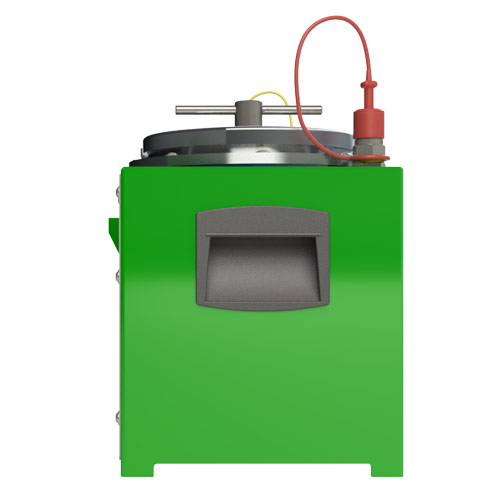

2S-24-500
Description
DC powered system designed for use on mobile plant. Can be mounted on powerful magnets for temporary installation. Simple control, high pressure protection, powder coated frame.
Supplied with 2x SDFC Filter Elements.
Features include:
- Over-pressure protection
- Rugged enclosed construction, powder coated mild steel frame
- Can be temporarily mounted (via powerful magnets) or permanently installed
- Simple to install and use
- When installed on mobile equipment secure system with ratchet straps
- 12/24v DC powered progressive cavity pumpset
- Sample points – allows connection to particle monitors / oil sampling
- Designed for continuous operations
Contact Us
Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.
CARDEV Datasheet
System benefits include:
- Removes microparticles
- Removes free and dissolved water contamination
- Increases system reliability
- Prevents system corrosion
- Reduces component wear
- Extends oil life and generates CO2 saving
- Reduces operating costs
- Suitable for use on multiple systems
- Enables filtration during operation
Suitable for all types of industrial applications including:
- Cranes
- Forestry equipment
- Mobile plant
- Service vehicles
- Diesel fuel filtration
Max Operating Temperature:
60℃
Dimensions (mm):
H: 573 W: 576 L: 267
Weight (kg):
45.5
Filter Element Type:
Standard Fit 2 x SDFC (Oil based fluids)
Filtration Results
Water Removed
Removes free and dissolved water down to <50ppm (0.005%).
Particles Removed
100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).
