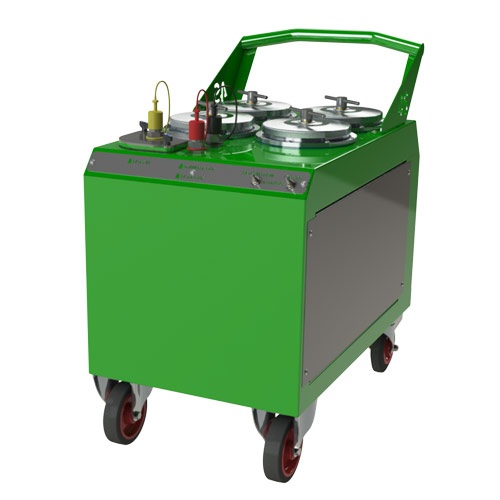

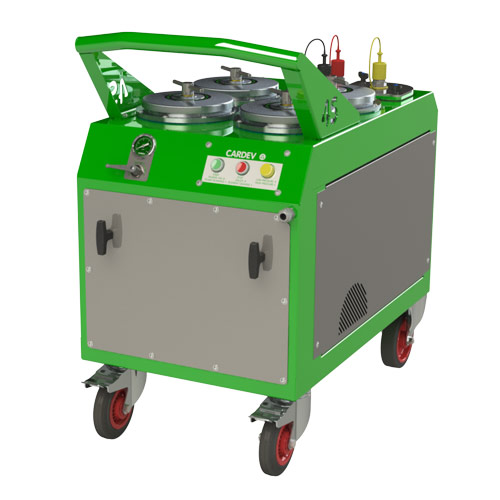

4S-B
Description
High / low pressure cut-off and filter element change timer. Mixed powder coated mild steel / stainless steel frame. Flow rate 500 l/hr**
Supplied with 4x SDFC Filter Elements.
Features include:
- Intelligent PLC control
- High / low pressure cutoff
- Filter element change timer
- Large capacity pre-filter with re-usable filter bag
- Integrated sample points – allows connection to ETL ConMon particle monitors / oil sampling
Contact Us
Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.
CARDEV Datasheet
Benefits include:
- Removes varnish and microparticles (down to less than 1 micron)
- Removes free and dissolved water contamination
- Increases system reliability
- Prevents system corrosion
- Reduces component wear
- Extends oil life and generates CO2 savings
- Reduces operating costs
Suitable for all types of industrial applications including:
- Power generation
- Plastic moulding
- Cement industry
- Manufacturing plants
- Service workshops
Max Operating Temperature:
60℃
Flow Rate (l/h)**:
500
60℃
Flow Rate (l/h)**:
500
Dimensions (mm):
H: 984 W: 554 L: 939
H: 984 W: 554 L: 939
Weight (kg):
110
Filter Element Type:
4 x SDFC Filter Elements
110
Filter Element Type:
4 x SDFC Filter Elements
Filtration Results
Water Removed
Removes free and dissolved water down to <50ppm (0.005%).
Particles Removed
100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).
