4S-RS
Description

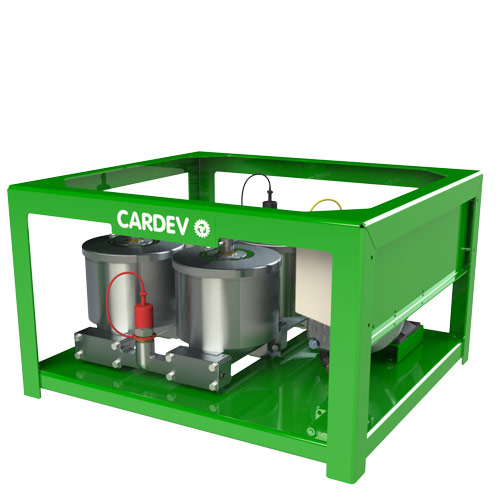

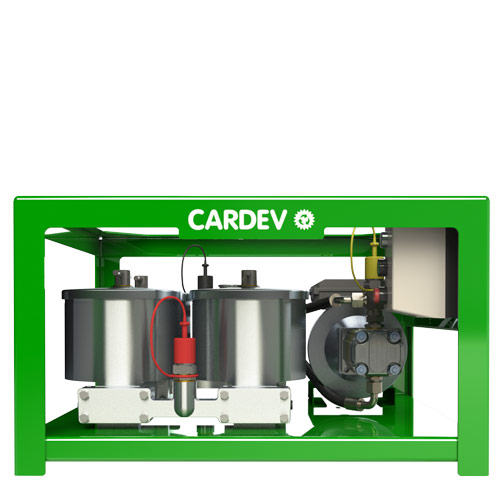

Static filtration system. Simple control, high pressure protection, powder coated frame. Supplied with 4x SDFC Filter Elements.
Features include:
- Simple to install and use on multiple systems
- Designed for continuous operation
- Can be temporarily mounted or permanently installed
- Transfer pump function for fast movement of fluid
- Rugged enclosed construction, powder coated mild steel frame
- Over-pressure protection
- Progressive cavity pumpset – 110V, 230V & 400V (50/60Hz) options available
- Integrated sample points – take a bottle sample or connect one of our ETL ConMon icountOS particle detectors for a real time check on fluid condition (ISO / NAS code and moisture content)
Contact Us
Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.
CARDEV Datasheet
Benefits include:
- Oil cleanliness maintained at “better than new*” levels
- Removes microparticles & salt, down to 1 micron and smaller
- Increases system reliability
- Prevents system corrosion
- Reduces component wear
- Extends oil life and generates CO2 savings
- Reduces operating costs
- Enables filtration during operation or shutdown
Suitable for all types of industrial applications including:
- Power generation
- Plastic moulding
- Cement Industry
- Manufacturing plants
- Winches
- Cranes
- A-Frames
- ROV Launch and Recovery Systems – LARS
- Tether Management System – TMS
- HPUs
Max Operating Temperature:
60℃
60℃
Dimensions (mm):
H: 435 W: 740 L: 672
H: 435 W: 740 L: 672
Weight (kg):
95
Filter Element Type:
4 x SDFC Filter Elements
95
Filter Element Type:
4 x SDFC Filter Elements
Filtration Results
Water Removed
Removes free and dissolved water down to <50ppm (0.005%).
Particles Removed
100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).
