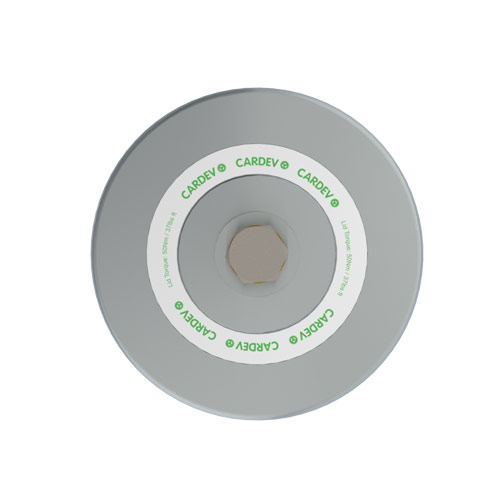

CARDEV HDU-M8
By-pass Oil Filter

Description

The HDU-M8 is a by-pass filter suitable for engines up to 300kw/30 litres of oil. Input pressure 2-6 Bar. Flow rate through filter 120 max.

Supplied with 1x CARDEV HDFC-N Filter Element.

Benefits include:

  • Removes microparticles including combustion deposits
  • Removes free and dissolved water contamination
  • Increases system reliability
  • Prevents engine corrosion
  • Reduces component wear
  • Extends oil life and generates CO2 saving
  • Reduces operating costs

For more information call us on
01423 522911

Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

cardev-datasheet
CARDEV Datasheet

The HDU-M8 features include:

  • Input pressure 2-6 Bar
  • Up to 99.9% water removed (both free and dissolved water)
  • Particle contamination (including combustion deposits) removed
  • Oil life can be extended by up to 4 times

Suitable for all types of industrial applications including:

  • Earth moving machines
  • Forestry equipment
  • Rail maintenance machines
  • Drilling/piling equipment
  • Marine
  • Gensets
  • Truck and Bus fleets

Flow Rate Through Filter (l/h)**:

120 (Max)
Dimensions (mm):
H: 261 W: 187.50 L: 168

Connections:

Inlet: 1/4″ BSP (m)
Outlet: 1/4″ BSP (m)

Weight (kg):

4.7
Filter Element Type:
Standard Fit 1 x HDFC-N

Filtration Results

Water Removed

Removes free and dissolved water down to <50ppm (0.005%).

Particles Removed

100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).

Each SDFC Filter Element Can Remove Up To

Particle Contamination

Water Contamination
