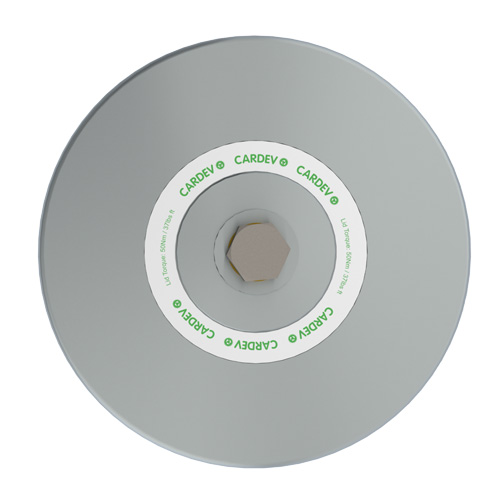

CARDEV SDU-M8
Description
The SDU-M8 is a by-pass filter suitable for systems of up to 40 litres of oil. Max input pressure 2-6 bar.
Supplied with 1x CARDEV SDFC Filter Element.
Benefits include:
- Removes microparticles including combustion deposits
- Removes free and dissolved water contamination
- Increases engine reliability
- Prevents engine corrosion
- Reduces component wear
- Extends oil life and generates CO2 saving
- Reduces operating costs
For more information call us on
01423 522911
Features
- Input pressure 2-6 Bar
- Up to 99.9% water removed (both free and dissolved water)
- Particle contamination (including combustion deposits) removed
- Oil life can be extended by up to 4 times
Application
- Earth moving machines
- Forestry equipment
- Rail maintenance machines
- Drilling/pilling equipment
- Marine
- Gensets
- Truck and bus fleets
Specifications
Dimensions (mm):
H: 308 D: 217
Flow Rate (l/m):
120-240 (Max)
Connections:
Inlet: 1/4″ BSP (m)
Outlet: 1/4″ BSP (m)
Outlet: 1/4″ BSP (m)
Weight (kg):
8
Filter Element Type:
Standard Fit 1 x SDFC (Oil based fluids)
Filtration Results
Particles Removed
100 times magnified, 1 scale mark = 10μm. Oil cleanliness is maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).
Before using CARDEV Filtration
After using CARDEV Filtration
CARDEV Case Study
CARDEV RESULTS:
Data taken from a Deutz 2015 EGR engine filted with a CARDEV SDU-M8 bypass filter and filled with fully synthetic engine oil:
DATA COLLECTION PERIOD:
12 months / 2000hrs.
Using CARDEV bypass filtration to control soot contamination extended the service life of the oil by 4 times when compared to normal engine filtration.
Oil consumption was reduced by 75%, generating a CO2 saving of over 75% when compared to engines without CARDEV filtration.
Call us now 01423 522911
Each SDFC Filter Element Can Remove Up To
Particle Contamination
Water Contamination
Other Products Similar To The SDU M8
Cleaning and recycling oil can be easy
CARDEV HDU-M8
By-pass Oil Filter
CARDEV LDU-M8
By-pass Oil Filter
CARDEV Filter Element Change 1:29
Our step-by-step video shows the correct way to replace a CARDEV SDFC filter element.
Frequently Asked Oil Filtration Questions
What is contamination?
Contamination can be broken down into three basic forms – Particulate, Water and Air.
Particulate is generally classified as ‘Silt’ or ‘Chip’. Silt is defined as an accumulation over time of particulates measuring less than 5 microns. The effect of Silt contamination is a slow degradation of system component performance and failure. Chips (measuring more than 5 microns) have a more dramatic effect and can cause immediate, catastrophic, unplanned and costly failures.
Where does contamination come from?
There are many areas where contamination can gain access into a hydraulic system, starting from as early as the build process. These include dust, welding slag, rubber from hydraulic hoses/seals, sand from castings, poor cleaning of components, and metal debris from machined components.
Open reservoir filling points, leaking heat exchangers, poor-performing or non-existing reservoir breathers, lack of proper filtration methods and worn cylinder seals are just some of the additional areas contaminants can enter during operation.
Another major source of contamination introduction simply happens when fresh, new, but dirty, contaminated oils are introduced. This can even happen during system top-ups.
How are contamination levels measured?
The following chart (ISO And NAS Cleanliness Codes) details the ISO code, relevant particle amounts and the type of application and its sensitivity level. More sensitive applications require cleaner oil to ensure reliability.
Can I trial CARDEV Filtration?
Absolutely. To avoid wasting anyone’s valuable time, however, we like the trial to be towards the end of the consultation process, to provide proof of concept. This means we will have gone through pricing with you, and we will have established criteria for a successful trial.
