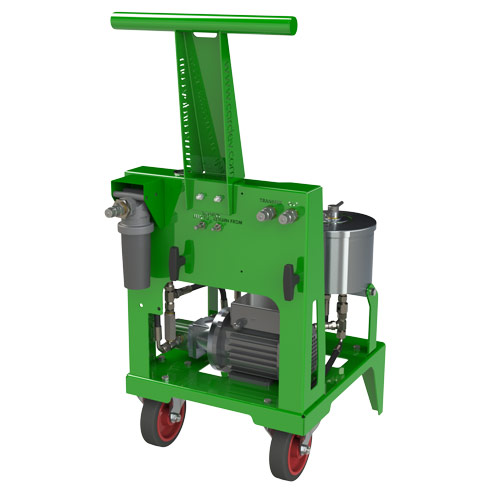

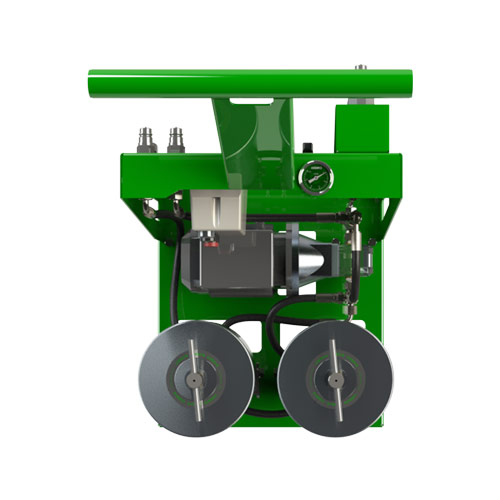

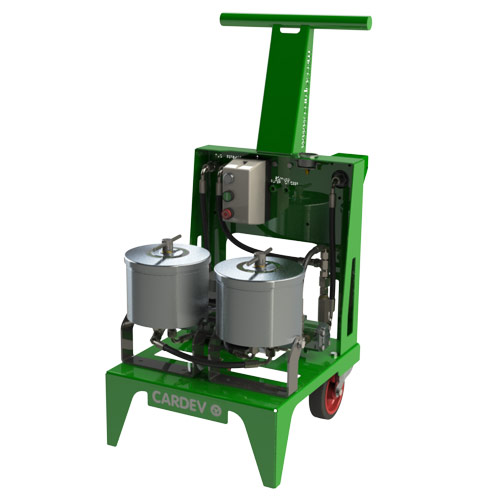

2S-500B
Mobile Offline Filter System

Description

Simple control, powder coated frame. Flow rate 220 l/hr**

Supplied with 2x SDFC Filter Element.

Features include:

  • Simple controls
  • Over-pressure protection
  • Integrated sample points – allows connection to ETL ConMon particle monitors / oil sampling

Contact Us

    Click to download our latest datasheet or user manuals. Please note that you will need a PDF reader to view the files.

    CARDEV Datasheetcardev-datasheet

    The 2S-500B benefits include:

    • Removes varnish and microparticles (down to less than 1 micron)
    • Removes free and dissolved water contamination
    • Increases system reliability
    • Prevents system corrosion
    • Reduces component wear
    • Extends oil life and generates CO2 savings
    • Reduces operating costs

    Suitable for all types of industrial applications including:

    • Power generation
    • Plastic moulding
    • Cement industry
    • Manufacturing plants
    • Service workshops
    Max Operating Temperature:
    60℃
    Flow Rate (l/h)**:
    220
    Dimensions (mm):
    H: 1065 W: 480 L: 672
    Weight (kg):
    52
    Filter Element Type:
    2x SDFC Filter Elements

    Filtration Results

    Water Removed

    Removes free and dissolved water down to <50ppm (0.005%).

    Particles Removed

    100-times magnified, 1 scale mark = 10μm. Oil cleanliness maintained at better than new levels. (Down to 13/11/8 (ISO 4406: 1999) – Class 2 NAS 1638).
